| Technical Data Sheet of Coil & Strip | |
| Product Name |

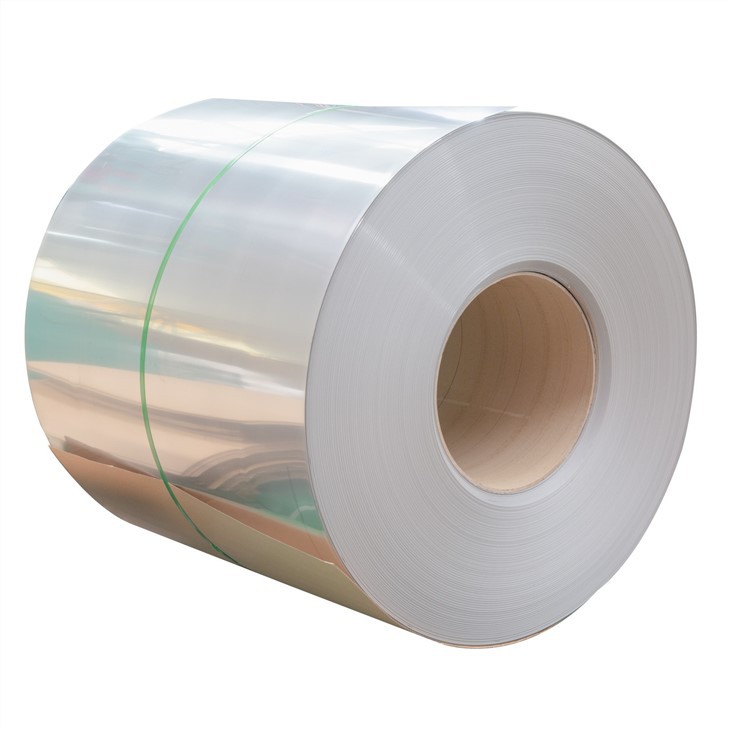

ASTM A240 304 (UNS S30400, 1.4301) Stainless Steel Strips and Coils |
| Equivalent Materials | AISI 304, UNS S30400, SAE 304, DIN 1.4301, SUS304, TP304, X5CrNi18-10 |
| Type | Cold Drawn, Hot Rolled, Hot Forged |
| Standard & Specifications |
GB,AISI,ASTM,DIN,EN,JIS
ASTM A240 |
| Available Grades |
Stainless steel 301 / 302 / 303 / 304 / 304L / 310S / 316L / 316Ti / 316LN / 317L / 904L / 2205 / 2507 / 321 / 32760 / 253MA / 254SMo / 410 / 420 / 430 / Custom465 / XM-19 / S31803 / S32750 / S32205 / F50 / F60 / F55 / F60 / F61 / F65. Nitronic 30 / Nitronic 32 / Nitronic 33 / Nitronic 40 / Nitronic 50 / Nitronic 60 etc. |
| Monel 400 / Monel K-500 | |
| Inconel 600 / Inconel 601 / Inconel 625 / Inconel 617 / Inconel 690 / Inconel 718 / Inconel X-750 | |
| Incoloy A-286 / Incoloy 800 / Incoloy 800H / Incoloy 800HT | |
| Incoloy 825 / Incoloy 901 / Incoloy 925 / Incoloy 926 | |
| Nimonic 75 / Nimonic 80A / Nimonic 90 / Nimonic 105 / Nimonic C263 / L-605 | |
| Hastelloy B / Hastelloy B-2 / Hastelloy B-3 / Hastelloy C / Hastelloy C-276 / Hastelloy C-22 | |
| Hastelloy C-4 / Hastelloy C-2000 / Hastelloy G-35 / Hastelloy X / Hastelloy N | |
| PH stainless steel 15-5PH / 17-4PH / 17-7PH | |
| Thickness | hot rolled 2.5mm-200mm |
| cold rolled 0.3mm - 6mm | |
| Width | hot rolled 1000mm-3500mm |
| cold rolled 10mm - 2000mm | |
| Finish | 2B, NO.1, HL, NO.4, 4K, 8K, sandblast, BA |
| Packing | Wooden box, wooden crame/pallet, iron frame |
| Inspection | TUV,BV,ABS,LR and so on |
| Application | Construction, Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery, Environmental, Food Processing, Aviation, Chemical Fertilizer, Sewage Disposal, Desalination, Waste Incineration etc. |
| Processing Service | Machining : Turning / Milling / Planing / Drilling / Boring / Grinding / Gear Cutting / CNC Machining |
| Deformation processing : Bending / Cutting / Rolling / Stamping | |
| Welded | |
| Forged | |
| Delivery Time | 7-40 days |
| Trade Term | FOB CIF CFR CIP DAP DDP EXW |
| Payment | T/T, L/C,D/A,D/P, Western Union,MoneyGram,According to customer requirements payments for offline orders. |
| Transportation | By air, by sea, by train, by truck |
| Sample | Free |
| Warranty | Trade assurance after sales service |
Product Details of 304 Stainless Steel Coils & Strips：
Overview of ASTM A240 304 Stainless Steel Strips:
304 stainless steel is a common material in stainless steel, with a density of 7.93 g/cm3, which is also called 18/8 stainless steel in the industry. High temperature resistance of 800 degrees, with good processing performance and high toughness, it is widely used in industry and furniture decoration industry and food and medical industry.
304 is a versatile stainless steel, which is widely used to make equipment and parts that require good overall performance (corrosion resistance and formability). In order to maintain the inherent corrosion resistance of stainless steel, steel must contain more than 18% chromium and more than 8% nickel. 304 stainless steel is a grade of stainless steel produced in accordance with the American ASTM standard.
Common labeling methods on the market include 06Cr19Ni10 and SUS304, among which 06Cr19Ni10 generally means national standard production, 304 generally means ASTM standard production, and SUS 304 means Japanese standard production.
Chemical Composition of ASTM A240 Grade 304 Coil:
| Specification | C | Si | Mn | P | S | Cr | Ni | Mo |
| SUS304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.05 | ≤0.03 | 18.00-20.00 | 8.25~10.50 | - |
Physical Properties of Grade 304 stainless steel strip:
Tensile strength ab (MPa): >520
Conditional yield strength 0.2 (MPa) ：>205
Elongation 5(%) ：>40
Reduction of area (%) ：>60
Hardness: ≤187HB; ≤90HRB; ≤200HV
Density (20C, Kg/dm2): 7.93
Melting point (C): 1398~1454
Specific heat capacity (0~100C, KJ*kg-1K-1): 0.50
Thermal conductivity (W-m-1.K-1): (100C) 16.3, (500C) 21.5
Linear expansion coefficient (10-6*K-1): (0~100C) 17.2, (O~500C) 18.4
Resistivity (20C, 10-60'm): 0.73
Longitudinal modulus of elasticity (20C, KN*mm2): 193
Mechanical Properties of 304 Stainless Steel Cold Rolled Coil:
| Performance |
ASTM A240 and ASME SA-240 Minimum required mechanical properties |
||
| 304 | 304L | 304H | |
|
0.2% Offset yield strength, psi MPa |
30,000 205 |
25,000 170 |
30,000 205 |
|
Ultimate tensile strength, psi MPa |
75,000 515 |
70,000 485 |
75,000 515 |
| Percent extension (2 inches or 51mm） |
40.0 |
40.0 |
40.0 |
|
hardness, (Maximum Brinell hardness） RB |
201 92 |
201 92 |
201 92 |
Application of Stainless Steel 304 Strip and Coils:
304 stainless steel is the most widely used chromium-nickel stainless steel. As a widely used steel, it has good corrosion resistance, heat resistance, low temperature strength and mechanical properties; it has good hot workability such as stamping and bending without heat treatment. Hardening phenomenon (use temperature -196℃～800℃). It is resistant to corrosion in the atmosphere. If it is an industrial atmosphere or heavily polluted area, it needs to be cleaned in time to avoid corrosion. It is suitable for food processing, storage and transportation.
304 stainless steel has good processing properties and weldability. Plate heat exchangers, bellows, household products (category 1, 2 tableware, cabinets, indoor pipelines, water heaters, boilers, bathtubs), auto parts (windshield wipers, mufflers, molded products), medical appliances, building materials, chemicals, food industry , Agriculture, ship parts, etc.
For more information about ASTM A240 304 (UNS S30400, 1.4301) Stainless Steel Strips and Coils, please call +86-731-82250427 or send an Email to [marketing@ronsteel.com]
