| Technical Data Sheet of Stainless Steel Plate & Sheet | |
| Product Name |

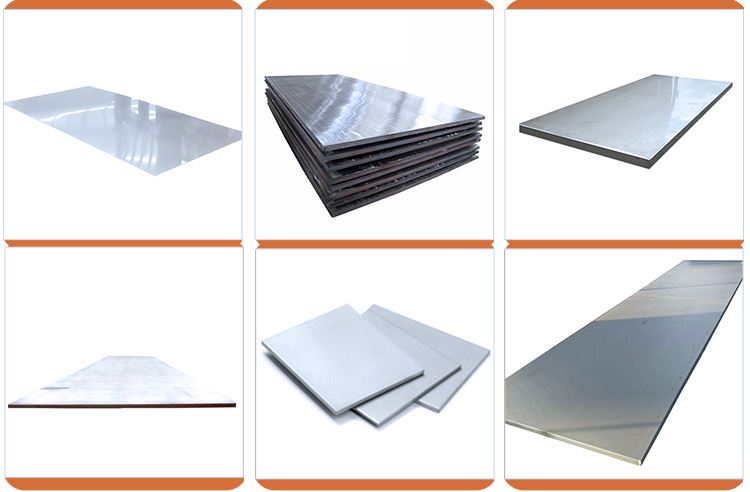

AISI 630 17-4PH (EN 1.4542, UNS S17400) Stainless Steel Plates & Sheet |
| Equivalent Materials | AISI 630, UNS S17400, NAS 630, grade 17-4PH, 1.4542 / 1.4548, X5CrNiCuNb16-4 / X5CrNiCuNb17-4-4, 0Cr17Ni4Cu4Nb |
| Type | Cold rolled, hot rolled, hot forged |
| Standard |
GB,AISI,ASTM,DIN,EN,JIS AMS 5604: Sheet, Strip and Plate AMS 5643: Bars, Forgings, Tubing and Rings AMS 5825: Welding Wire AMS 5827: Welding Electrodes AMS 7474: Bolts ASTM A 564/ASTM SA 564: Bars, Wire and Shapes ASTM A 693/ASME SA 693: Sheet, Plate and Strip ASTM A 705/ASME SA 705: Forgings |
| Grade |
Stainless steel 301 / 302 / 303 / 304 / 304L / 310S / 316L / 316Ti / 316LN / 317L / 904L / 2205 / 2507 / 321 / 32760 / 253MA / 254SMo / 410 / 420 / 430 / Custom465 / XM-19 / S31803 / S32750 / S32205 / F50 / F60 / F55 / F60 / F61 / F65. Nitronic 30 / Nitronic 32 / Nitronic 33 / Nitronic 40 / Nitronic 50 / Nitronic 60 etc. |
| Monel 400 / Monel K-500 | |
| Inconel 600 / Inconel 601 / Inconel 625 / Inconel 617 / Inconel 690 / Inconel 718 / Inconel X-750 | |
| Incoloy A-286 / Incoloy 800 / Incoloy 800H / Incoloy 800HT | |
| Incoloy 825 / Incoloy 901 / Incoloy 925 / Incoloy 926 | |
| Nimonic 75 / Nimonic 80A / Nimonic 90 / Nimonic 105 / Nimonic C263 / L-605 | |
| Hastelloy B / Hastelloy B-2 / Hastelloy B-3 / Hastelloy C / Hastelloy C-276 / Hastelloy C-22 | |
| Hastelloy C-4 / Hastelloy C-2000 / Hastelloy G-35 / Hastelloy X / Hastelloy N | |
| PH stainless steel 15-5PH / 17-4PH / 17-7PH | |
| Thickness | hot rolled 2.5mm-200mm |
| cold rolled 0.3mm - 6mm | |
| width | hot rolled 1000mm-3500mm |
| cold rolled 10mm - 2000mm | |
| Finish | 2B, NO.1, HL, NO.4, 4K, 8K, sandblast, BA |
| Packing | Wooden box, wooden crame/pallet, iron frame |
| Inspection | TUV,BV,ABS,LR and so on |
| Application | Construction, Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery, Environmental, Food Processing, Aviation, Chemical Fertilizer, Sewage Disposal, Desalination, Waste Incineration etc. |
| Processing Service | Machining : Turning / Milling / Planing / Drilling / Boring / Grinding / Gear Cutting / CNC Machining |
| Deformation processing : Bending / Cutting / Rolling / Stamping | |
| Welded | |
| Forged | |
| Delivery Time | 7-40 days |
| Trade Term | FOB CIF CFR CIP DAP DDP EXW |
| Payment | T/T, L/C,D/A,D/P, Western Union,MoneyGram,According to customer requirements payments for offline orders. |
| Transportation | By air, by sea, by train, by truck |
| Sample | Free |
| Warranty | Trade assurance after sales service |
Product Details of AISI 630 17-4PH Stainless Steel Plates：
Overview of 17-4PH SUS 630 Stainless Steel Plate Sheet:
17-4PH/S17400/ 0Cr17Ni4Cu4Nb/sus630/precipitation hardening stainless steel
17-4PH is a martensitic precipitation hardening stainless steel. It has high strength, high hardness, good welding performance and corrosion resistance. It has been widely used in valves, shafts and chemical fiber industries, and high-strength parts with certain corrosion resistance requirements.
17-4PH characteristics and scope of application: precipitation hardening steel with copper added. Used in the manufacture of shafts and steam turbine parts.
17-4PH alloy is a precipitation, hardening, martensitic stainless steel composed of copper, niobium/columb. This grade has high strength, hardness (up to 300ºC/572º F) and corrosion resistance. After heat treatment, the mechanical properties of the product are more perfect, and can reach a compressive strength of up to 1100-1300 mpa (160-190 ksi). This grade cannot be used at temperatures higher than 300º C (572º F) or very low temperatures. It has good corrosion resistance to the atmosphere and diluted acids or salts. Its corrosion resistance is the same as 304 and 430.
Chemical Composition of AMS 5604 17-4PH Stainless Steel Sheet and Plate:
|
Grade |
17-4PH (EN 1.4542, UNS S17400) |
AISI 630 |
|
C |
≤ 0.07 |
≤ 0.07 |
|
Si |
≤ 1.00 |
≤ 1.00 |
|
Mn |
≤ 1.00 |
≤ 1.00 |
|
P |
≤ 0.040 |
≤ 0.040 |
|
S |
≤ 0.030 |
≤ 0.030 |
|
Cr |
15.00~17.50 |
15.00~17.00 |
|
Ni |
3.00~5.00 |
3.00~5.00 |
|
Cu |
3.00~5.00 |
3.00~5.00 |
|
Nb |
0.15~0.45 |
Nb+Cb : 0.15~0.45 |
Physical Properties of AISI 630 17-4PH (EN 1.4542, UNS S17400):
Density: 0.282 lb/inch 3
Melting point: 2560-2625°F
Poisson rate: 0.272
Resistivity: 463 Ohm-circ mil/ft
| Temperature, °F | 70 | 212 | 392 | 572 |
| Coefficient of thermal expansion, in/in°F x 10 -6 | - | 7.2 | 7.5 | 7.8 |
|
Thermal conductivity Btu • ft/ft2 • hr • °F |
8.6 | 9.2 | 9.8 | 10.4 |
|
Modulus of Elasticity, psi X 10 6 |
29.0 | 28.1 | 27.0 | 26.1 |
* 70°F to indicated temperature.
Mechanical properties of Grade 630 stainless steels plate
Tensile strength σb (MPa): aging at 480°C, ≥1310; aging at 550°C, ≥1060; aging at 580°C, ≥1000; aging at 620°C, ≥930
Conditional yield strength σ0.2 (MPa): aging at 480°C, ≥1180; aging at 550°C, ≥1000; aging at 580°C, ≥865; aging at 620°C, ≥725
Elongation δ5 (%): aging at 480°C, ≥10; aging at 550°C, ≥12; aging at 580°C, ≥13; aging at 620°C, ≥16
Reduction of area ψ (%): aging at 480°C, ≥40; aging at 550°C, ≥45; aging at 580°C, ≥45; aging at 620°C, ≥50
Hardness: solid solution, ≤363HB and ≤38HRC; aging at 480℃, ≥375HB and ≥40HRC; aging at 550℃, ≥331HB and ≥35HRC; aging at 580℃, ≥302HB and ≥31HRC; aging at 620℃, ≥277HB and ≥28HRC
17-4PH heat treatment specification and metallographic structure:
Heat treatment specification:
1)Solid solution 1020～1060℃ fast cooling;
2) Aging at 480℃, after solution treatment, air cooling at 470～490℃;
3) Aging at 550℃, after solution treatment, air cooling at 540～560℃;
4) Aging at 580℃, after solution treatment, air cooling at 570～590℃;
5) Aging at 620℃, after solution treatment, air cooling at 610～630℃.
Application:
Offshore platforms, helicopter decks, food industry, pulp and paper industry, aerospace (turbine blades), mechanical parts, nuclear waste barrels, other platforms.
It is suitable for manufacturing equipment parts that require good corrosion resistance and high strength. Such as engine parts, pump shafts, gears, piston rods and fasteners required by characteristics.
