Ronsco Export Inconel 800 Pipe & Tube To Indonesia, Singapore,Malalysia USA, UK, Saudi Arabia, Australia, Germany & Spain. Furthermore, Incoloy 800Ht Pipe & Tube Supplied By Ronsco Is Made Up Of High Quality Raw Material. Incoloy 800 Pipe & Tube Is Resistant To Corrosion, They Have High Tensile Strength And Are Durable.
| Incoloy 800 / 800H / 800HT Pipe Specifications | |
| Pipe Specification | ASTM B407, B514 / ASME SB407, SB514 |
| Dimension Standard | ANSI B36.19M, ANSI B36.10 |
| Incoloy 800/H/HT Pipe Size | 1/4" sch 10 to 16" sch 80 |
| Incoloy 800/H/HT Tube Size | OD 1/16"~4", Wall: 0.010"~0.250", Length: 17'/24' FT R/L |
| Outside Diameter | 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness |
| Type | Seamless / ERW / Welded / Fabricated Pipes |
| Form | Round, Square, Rectangular, Oval, Hydraulic Etc |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Beveled End, Treaded |
Incoloy 800, 800h, 800ht Tubes Chemical Composition
| Inconel Grade | Incoloy 800HT | Inconel 800 | Incoloy 800H |
| Fe | 39.5 min | min 39.5 | 39.5 min |
| Ni | 30-35 | 30-35 | 30-35 |
| Cu | 0.75 max | max 0.75 | 0.75 max |
| Ti | 0.25-0.60 | 0.15-0.60 | 0.15-0.60 |
| Cr | 19-23 | 19-23 | 19-23 |
| Al | 0.85-1.20 | 0.15-0.60 | 0.15-0.60 |
| C | 0.06-0.1 | 0.1 max | 0.05-0.1 |
| S | 0.015 max | max 0.015 | 0.015 max |
| Si | 1.0 max | max 1.0 | 1.0 max |
| Mn | 1.5 max | max 1.5 | 1.5 max |

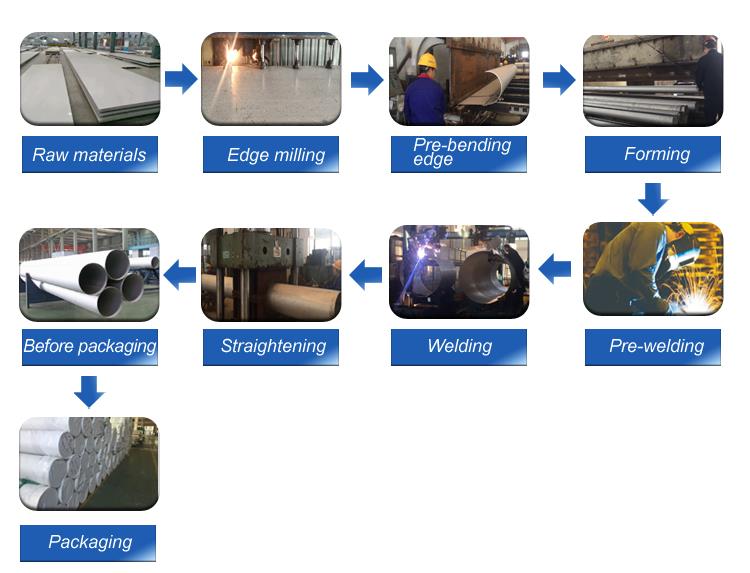

Inconel 800 Pipe Processing:
Incoloy 800/ 800H/ 800HT Seamless / Welded Pipes Application Industries:
Power Generation
Petrochemicals
Gas Processing
Pharmaceuticals
Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry
