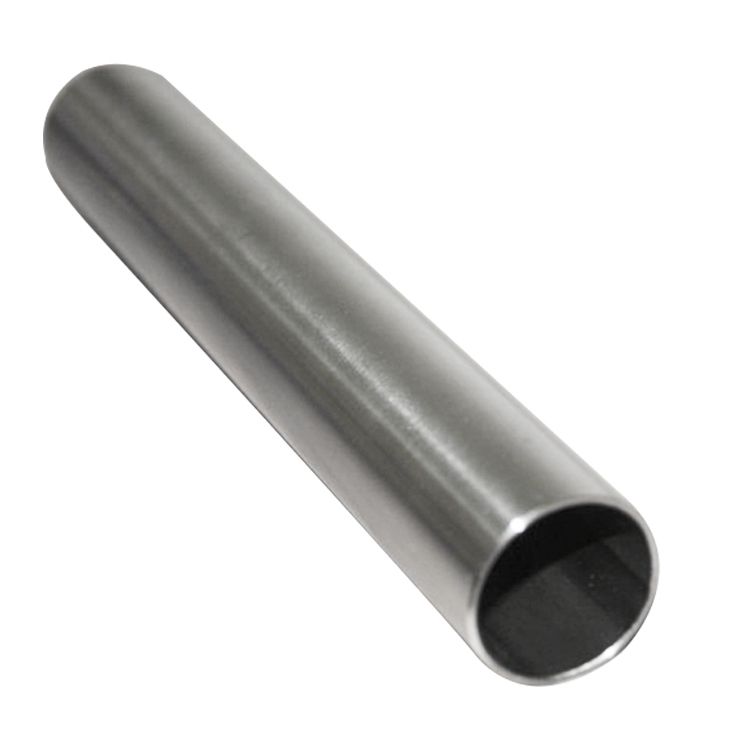

ASTM A213 SS straight heat exchanger tube is a common material of heat exchanger. The stainless steel pipes are with good antioxidant properties. Compared with the traditional carbon steel heat exchanger tube, stainless steel heat exchanger tube has a better heat transfer effect and longer service life. Straight Heat exchanger tube is usually used in tubular heat exchangers and tube plate heat exchangers.
Products Features:
1.Strong corrosion resistance.
2.Strong high-temperature steam erosion resistance
3.good tube install tech and change tube directly
4.Uniform thickness
5.High heat transfer coefficient
6. Compared with copper pipe, the same heat exchanger area the stainless steel heat exchanger will save more costs.
Products Specification:
|
ASTM A213 SS Straight Heat Exchanger Tube |
|
|
Specifications: |
ASTM SA213/ A249/ A163 |
|
Material: |
304, 304L, 316, 316L, 321, 310S, 904L, 2205 |
|
Schedule: |
SCH5S, SCH10S, SCH40S, SCH40, XS, STD |
|
Out diameter: |
6-127mm |
|
Thickness: |
0.5-12mm |
|
Form: |
Round, Rectangular, Square, Etc |
|
Type: |
Seamless / ERW / Welded / LSAW Tubes |
|
Length: |
Single Random, Double Random & Cut Length. |
|
End: |
Plain End, Beveled End |
|
|
|||||
| Material | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Rockwell B (HR B) max | Brinell (HB) max |
| TP304 | 515 | 205 | 40 | 92 | 201 |
| TP304L | 485 | 170 | 40 | 92 | 201 |
| TP316 | 515 | 205 | 40 | 95 | 217 |
| TP316L | 485 | 170 | 40 | 95 | 217 |
|
|
|
|
|
|
| Physical Testing | Laboratory Spectrometer & Portable Spectrometer |
| Flattening Test | Positive Material Identification (PMI) Test |
| Tension Test | Micro Structure Examination Test / Analysis |
| Flaring Test | Ferrite Number Test |
| Flange Test | Online O D Measurements |
| Reverse Bend Test | Weight Measurement for Chemical Analysis |
| Transverse Tension Test | Online Eddy Current Test |
| Transverse Guide Bend Test | Ultrasonic Test for Flaw Detection |
| Impact Test at Controlled Temperature | Portable U T Tester for Thickness Measurement |
1. We start the production strictly as per the standard and will check the quality regularly during each production process. Before shipment, our QC will inspect one by one to ensure 100% qualified.
2.One to one prompt reply in 16 hours.
3.Lead time: 7 to 15 days
4.Package: two options for the package.
Option 1: packed with waterproof woven bags, bundle up with iron wire or strip in wooden cases.
Option 2: Packed with a plastic bag for each pipe, a waterproof bag for each bundle.
