317L (00Cr19Ni13Mo3, SUS317L) alloy is austenitic stainless steel based on molybdenum. Compared with conventional chromium-nickel austenitic stainless steels such as 304 alloy, it has stronger resistance to chemical corrosion. In addition, compared with conventional stainless steel, 317L alloy has higher ductility, stress corrosion resistance, compressive strength and high temperature resistance. It is low carbon grade or L grade, this grade has anti-sensitization performance during welding and heat treatment.
Application areas are:
Oil and natural gas industry equipment; offshore platforms, heat exchangers, underwater equipment, firefighting equipment; chemical processing industry, utensils and pipeline industry; desalination, high-pressure RO equipment and subsea pipelines; energy industry such as power plant desulfurization and denitrification FGD systems, industrial scrubbing systems , Absorption tower; mechanical parts (high-strength, anti-corrosion, wear-resistant parts).
Main specifications:
317L seamless pipe, 317L steel plate, 317L round steel, 317L forging, 317L flange, 317L ring, 317L welded pipe, 317L steel strip, 317L straight bar, 317L wire and supporting welding materials, 317L round cake, 317L flat steel, 317L hexagon bar, 317L size head, 317L elbow, 317L tee, 317L machined parts, 317L bolts and nuts, 317L fasteners.
|
317, UNS S31700, DIN W.Nr.1.4436 317L,UNS S31703, DIN W.Nr.1.4438 |
|||||||||||||||
| Genenal Introduction | |||||||||||||||
| Types 317 (S31700), 317L (S31703) are molybdenum-bearing austenitic stainless steels which are more resistant to general corrosion and pitting/crevice corrosion than the conventional chromium-nickel austenitic stainless steels such as Type 304. These alloys also offer higher creep, stress-to-rupture and tensile strength at elevated temperature. In addition to excellent corrosion resistance and strength properties, the Types 316, 316L, 317, and 317L Cr-Ni-Mo alloys also provide the excellent fabricability and formability which are typical of the austenitic stainless steels. | |||||||||||||||
| Chemical Composition: | |||||||||||||||
| Grade | Content | C | Si | Mn | S | Ni | Cr | P | Mo | Cu | N | Fe |
|
|
|
| 317 | Min |
|
|
|
|
11.00 | 18.00 |
|
3.00 |
|
|
BAL |
|
|
|
| Max | 0.08 | 0.75 | 2.00 | 0.03 | 15.00 | 20.00 | 0.045 | 4.00 | - | 0.10 | BAL |
|
|
|
|
| 317L | Min |
|
|
|
|
11.00 | 18.00 |
|
3.00 |
|
|
BAL |
|
|
|
| Max | 0.03 | 0.75 | 2.00 | 0.03 | 15.00 | 20.00 | 0.045 | 4.00 | - | 0.10 | BAL |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Forms & Specifications | |||||||||||||||
|
Bar & Profile: ASTM A276 Plate, Sheet & Strip: ASTM A240, AMS 5524,AMS 5907 Seamless pipe/tube: ASTM A312, ASTM A213, ASTM A269, ASTM A270,ASTM A271,ASTM A376,AMS 5573,AMS 5584 Welded pipe/tube: ASTM A312, ASTM A213, ASTM A269, ASTM A270,ASTM A249, ASTM A358,ASTM A409,ASTM A554, AMS 5573, AMS 5584 Pipe fittings: ASTM A403 Forgings: ASTM A473, ASTM A182 |
|||||||||||||||
| Physical Properties | Application: | ||||||||||||||
|
Density: 0.29 lb/in³ (8.03 g/cm3) Melting Range: 2540-2630°F (1390-1440°C) Modulus of Elasticity in Tension: 29 x 106 psi (200 GPa) Modulus of Shear: 11.9 x 106 psi (82 GPa) |
• Oil & petroleum refining equipment • Food processing equipment • Pulp and paper processing equipment • Soap and photographic handling equipment • Textile Industry Equipment • Architectural • Pharmaceutical processing equipment |
||||||||||||||
|
Typical Mechanical Properties: Minimum mechanical properties for annealed Types 316, 316L, 317 and 317L plate, sheet and strip as required by ASTM A240/ASME SA-240 |
|||||||||||||||
| Material | Temp℃ |
Yield Strength 0.2% min. (mpa) |
Tensile Strength min. (mpa) |
Elongation % min. |
Hardness HB max. |
||||||||||
| 317 | RT | 205 | 515 | 35 | 217 | ||||||||||
| 317L | RT | 205 | 515 | 40 | 217 | ||||||||||

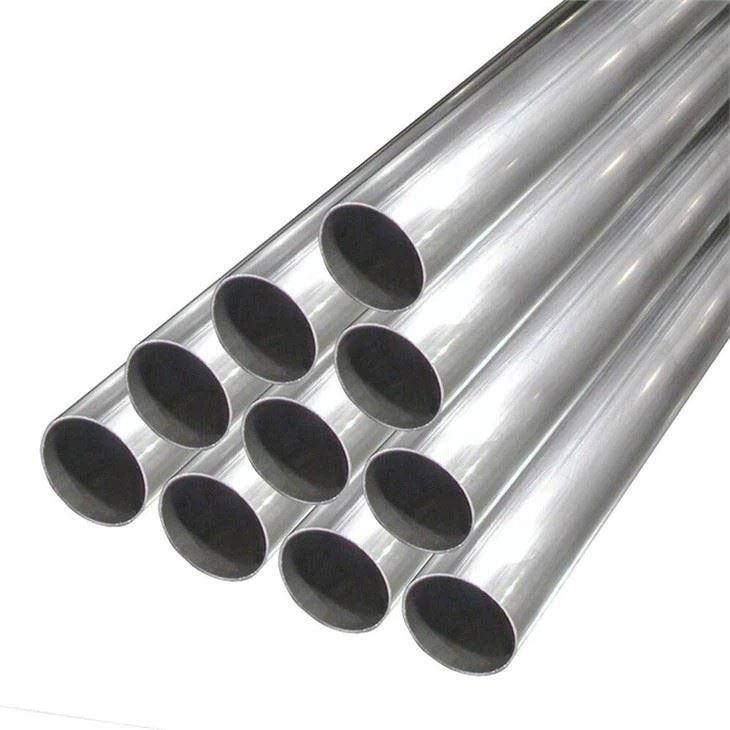

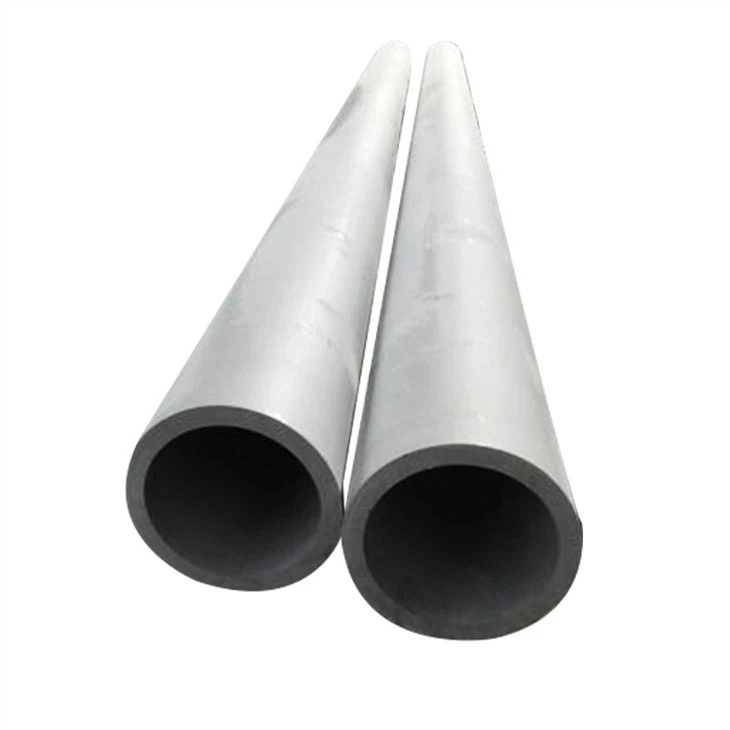

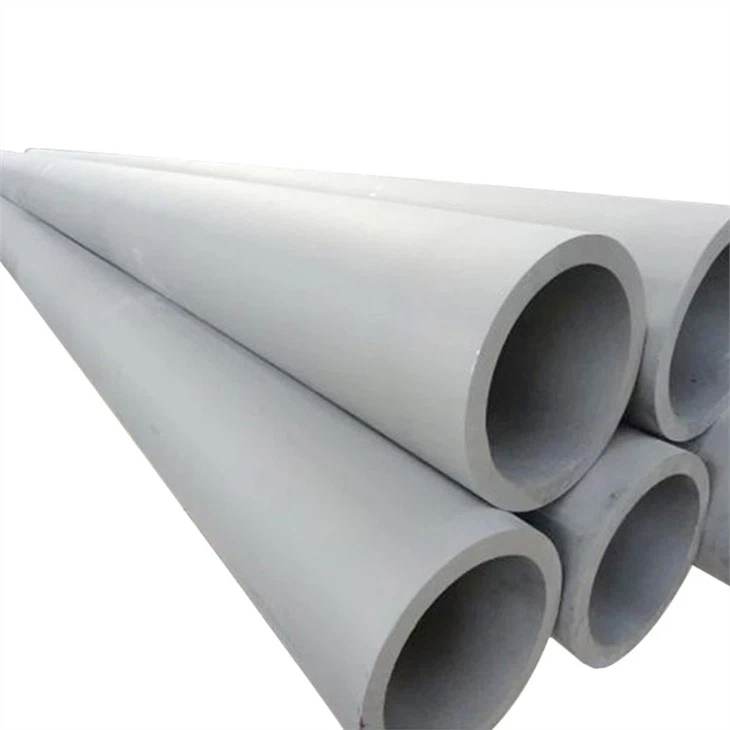

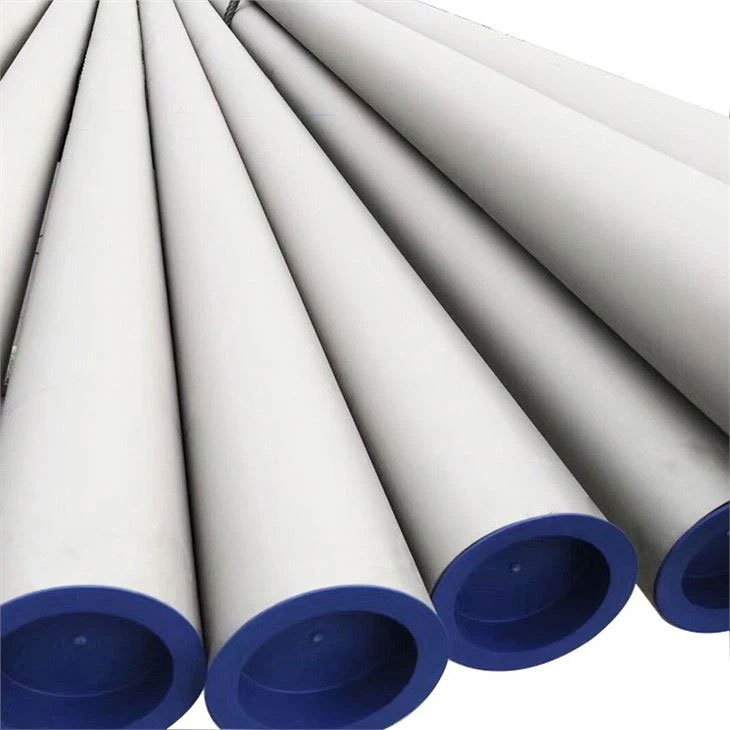

| Product Name |
|
| Type | Seamless / Welded |
| Shape | Square / Rectangular / Round |
| Standard | GB,AISI,ASTM,DIN,EN,JIS |
| Grade | Stainless steel 304 / 304L / 310S / 316L / 317L / 904L / 2205 / 2507 / 32760 / 253MA / 254Mo / S31803 / S32750 / S32205 etc |
| Monel 400 / Monel K-500 | |
| Inconel 600 / Inconel 601 / Inconel 625 / Inconel 617 / Inconel 690 / Inconel 718 / Inconel X-750 | |
| Incoloy A-286 / Incoloy 800 / Incoloy 800H / Incoloy 800HT | |
| Incoloy 825 / Incoloy 901 / Incoloy 925 / Incoloy 926 | |
| Nimonic 75 / Nimonic 80A / Nimonic 90 / Nimonic 105 / Nimonic 263 / Nimonic L-605 | |
| Hastelloy B / Hastelloy B-2 / Hastelloy B-3 / Hastelloy C / Hastelloy C-276 / Hastelloy C-22 | |
| Hastelloy C-4 / Hastelloy C-200 / Hastelloy G-35 / Hastelloy X / Hastelloy N | |
| Austenitic stainless steel 904L / XM-19 / 316Ti / 316LN / 371L / 310S / 253MA | |
| DP steel 254SMo / F50 / 2205 / 2507 / F55 / F60 / F61 / F65 | |
| PH stainless steel 15-5PH / 17-4PH / 17-7PH | |
| Out diameter | Seamless Pipe 6MM - 1174MM or customized |
| Welded Pipe 1.9mm - 5000mm or customized | |
| Thickness | Seamless Pipe 1mm - 80mm or customized |
| Welded Pipe 0.5mm - 80mm or customized | |
| Max Length | Seamless Pipe 12000mm or customized |
| Welded Pipe 50000mm or customized | |
| Finish | 2B, Pickling, polished, brushed, sandblast, BA, EP, |
| Packing | waterproof polybag, wooden box, end cap, wooden crame/pallet |
| Inspection | TUV,SGS,BV,ABS,LR and so on |
| Application | Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery, Environmental, Food Processing, Aviation, Chemical Fertilizer, Sewage Disposal, Desalination, Waste Incineration etc. |
| Processing Service | Machining : Turning / Milling / Planing / Drilling / Boring / Grinding / Gear Cutting / CNC Machining |
| Deformation processing : Bending / Cutting / Rolling / Stamping | |
| Welded | |
| Forged | |
| Delivery Time | 7-40 days |
| Trade Term | FOB CIF CFR CIP DAP DDP EXW |
| Payment | T/T, L/C,D/A,D/P, Western Union,MoneyGram,According to customer requirements payments for offline orders. |
| Transportation | By air, by sea, by train, by truck |
| Sample | Free |
| Warranty | Trade assurance after sales service |
