Butt weld fittings get their name from the method for which they attached to a piping system. Each end of a butt weld fitting is beveled, and it is attached by butting the fitting up to the adjoining pipe and welding along the bevel. This connection is both stronger and smoother than threaded or socket weld connections, making butt weld fittings the preferred product for critical applications
Specification of product
Product Specifications
|
Part Number |
NC01616-16 |
|
Number of Items |
1 |
|
Global Trade Identification Number |
10671404164277 , 10671404076853 |
|
Inside Diameter |
1 inches |
|
Length |
1-1/2 inches |
|
Model Number |
NC01616-16 |
|
Size |
1" |
Specification for this product family
|
Nominal Wall Thickness |
10 |
|
Specification Met |
Astm A403,asme Sa403,ansi B36.10,ansi B36.19,ansi B16.9,ansi B16.28, Mss Sp43, A312 |
|
Measurement System |
Inch |
|
Brand Name |
Merit Brass |
|
Grade Rating |
316L |
|
Item Shape |
Cap |
|
Material |
Stainless Steel |
|
Pressure Rating Class |
Not Rated |
|
Style |
Butt Weld |
Advantage of our products：

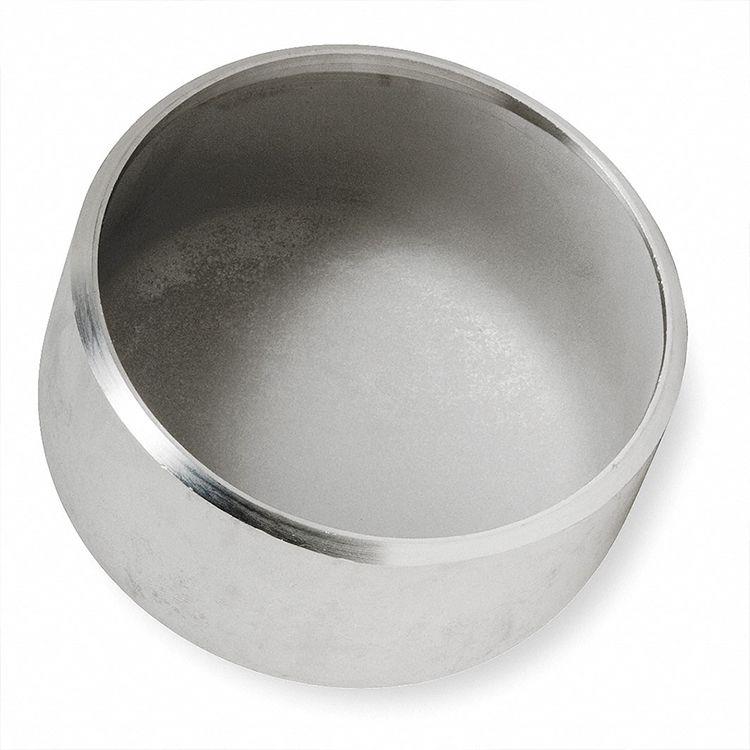

· Cap for closing the end of a pipe
· Butt-weld, beveled connection for welding to pipe with a smooth bore
· Welded connections ensure tight seals and reduce the possibility of leakage
· Made of 316/316L stainless steel for strength and greater ease in welding
· Low carbon content to ensure greater resistance to corrosion

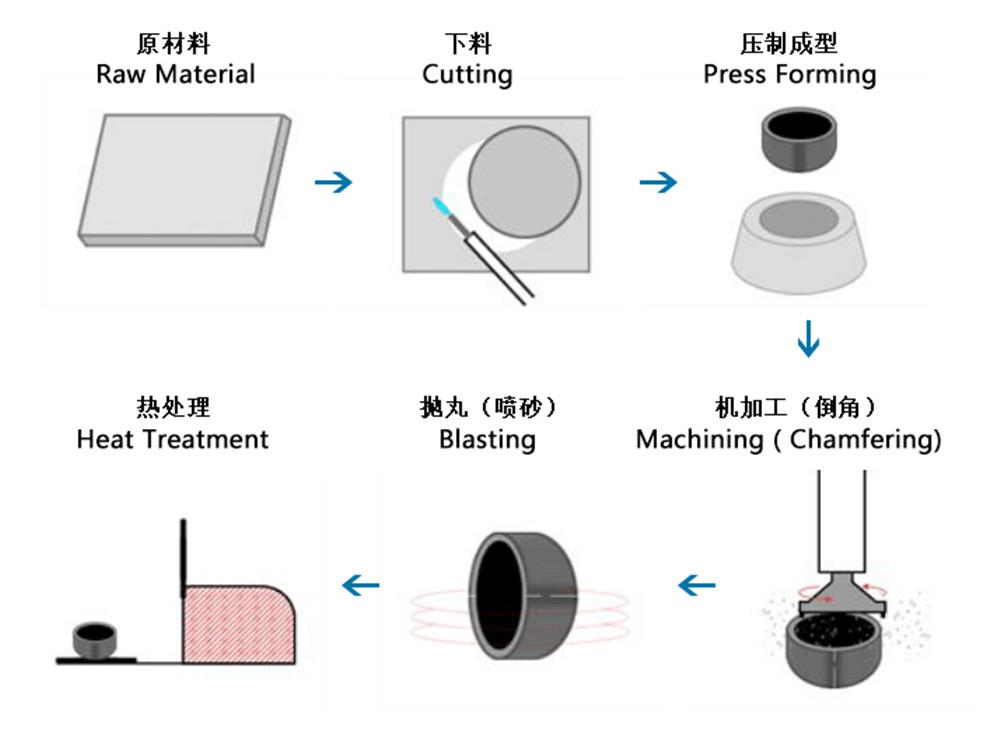

Production process
1.22 Years Of Manufacturing Experience
2.We offers a commendable range of Stainless Steel Pipe, Fittings, Flanges with competitive price.
3.Customizable, International Standards
4.Strict Testing Process, Quality Assurance
5.7*24H Online service.
6.Fast Delivery：7-15days
